7. Connecting DockerHub to GitHub

danger

Never hardcode your passwords or tokens inside your GitHub Actions pipeline files (.yml). They must be securely stored in GitHub Secrets!

Generating a Personal Access Token (PAT)​

We need a Personal Access Token (PAT) from DockerHub along with our username to allow the pipeline to authenticate and push to the Docker repository.

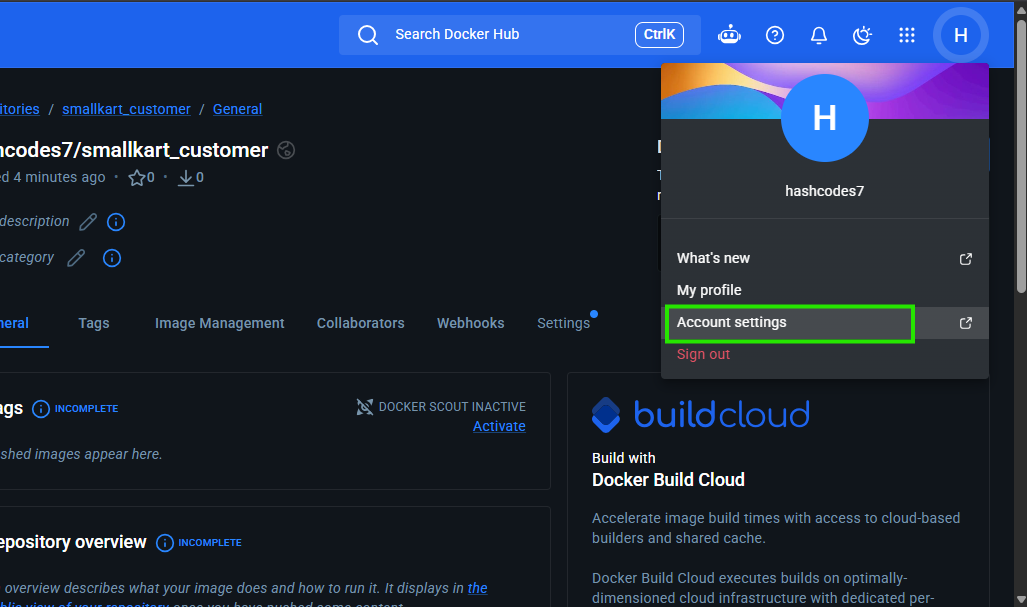

  1. In DockerHub, go to Account Settings -> Security. Account Settings

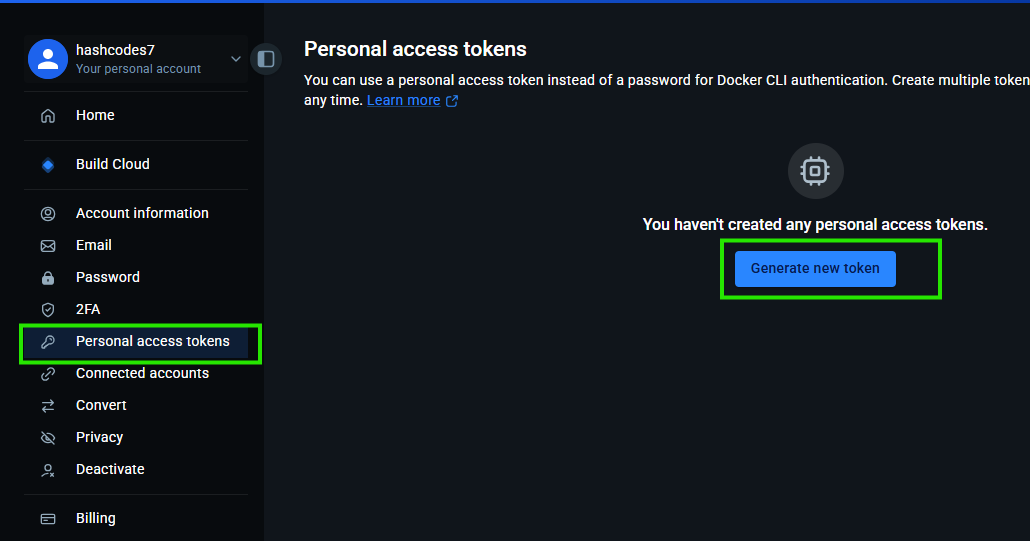

  2. Click on New Access Token. New Token

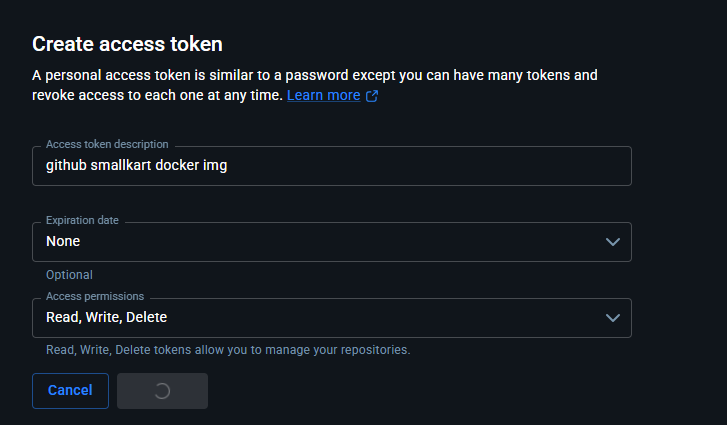

  3. Give it a descriptive name (like github-actions-push) and create it. Create Token

This will generate a secure Docker repository token that looks something like this: Generated Token

Configuring GitHub Secrets​

Now, take this token and put it in GitHub Secrets so your pipeline can securely inject it during the build process.

  1. Go to your GitHub repository -> Settings -> Secrets and variables -> Actions. GitHub Settings

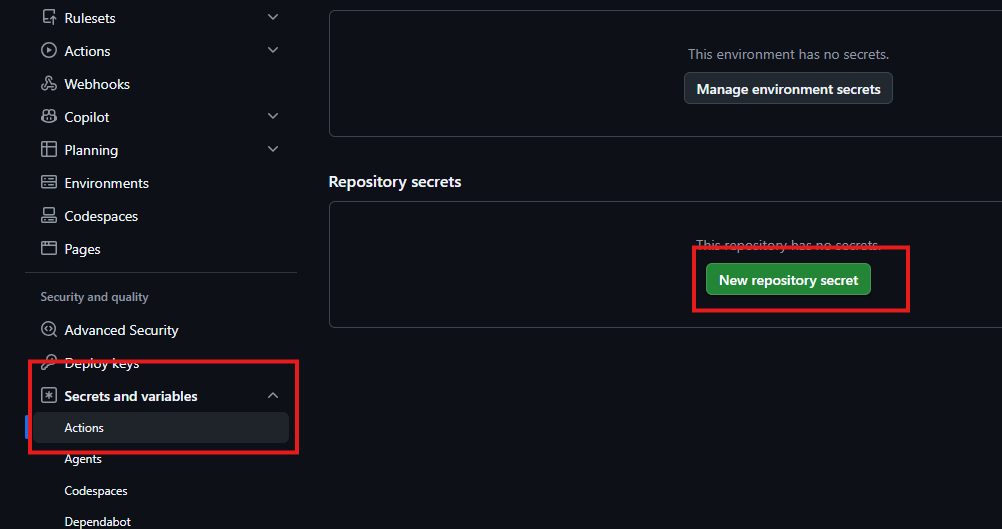

  2. Click on New repository secret. New Secret Button

  3. Create the following two secrets identically as shown: Create Secret Name Create Secret Value

Required Secrets Table​

Secret KeyValue
DOCKERHUB_USERNAMEhashcodes7 (Your Username)
DOCKERHUB_TOKENYour DockerHub PAT

Next time you push code to GitHub, your CI/CD pipeline will utilize these secrets to authenticate.

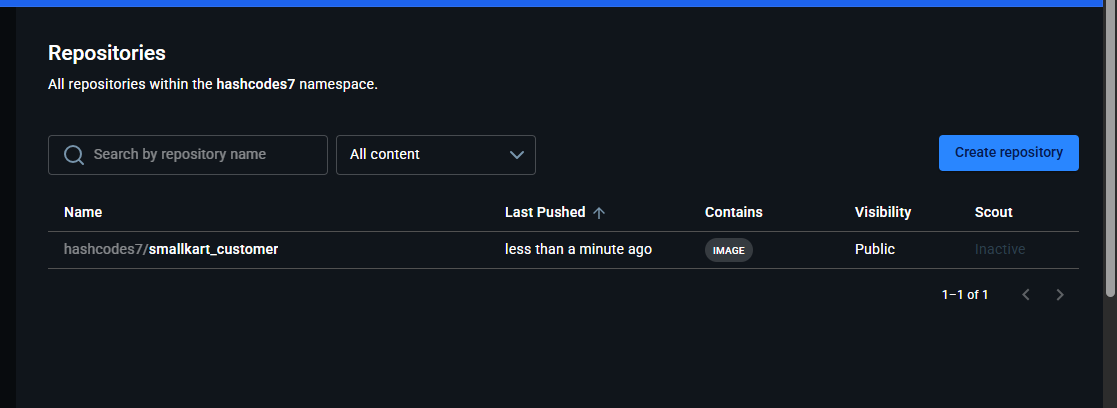

Once your CI/CD pipeline finishes processing, you will get an automatically built and pushed image appearing right in DockerHub like this! Pipeline Success
